Commutator Surface Turning Machine For Precise Lathing Mini Engine Rotor

Name: Commutator Surface Turning Machine For Precise Lathing Mini Engine Rotor
Brand: Nide
Price: 1 USD

Buy cheap Commutator Surface Turning Machine For Precise Lathing Mini Engine Rotor product

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : ND-WGK-2XA

MOQ : 1 set

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 35 working days

Payment Terms : T/T, L/C

Supply Ability : 80 sets per year

name : Commutator Surface Turning Machine

color : customized

condition : new

working station : one

Contact Now

Commutator Surface Turning Machine For Precise Lathing Mini Engine Rotor

Quick Detail:

1. This commutator surface turning machine is easy to operate.

2. This commutator surface turning machine has a wide application, like washing machine motor rotor, fan motor rotor, pump rotor etc.

3. The commutator surface turning can be used for different rotor, only need to change tooling.

4. The commutator surface is suitable for rotor OD range 15~100mm.

Description:

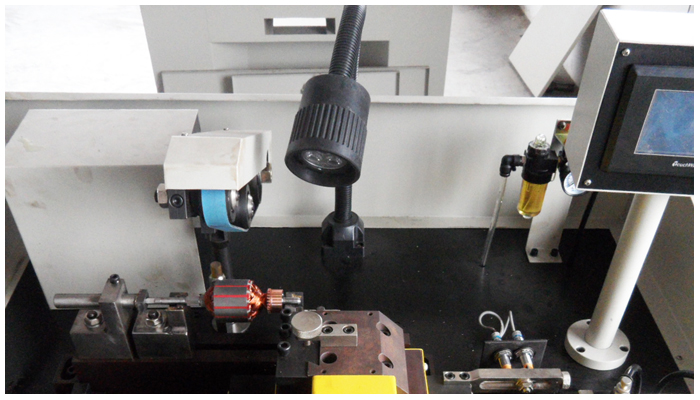

This type of Rotor turning machine is suitable for precise lathing for mini-engine rotor's iro-coil sphere of vehicles, motorcycles engine and so on.It also can be used for commutator turning, only need to change a fixture.

Function and feature

1. Mechanical, electrical interlock. The warning reminder of sensor position and other troubles.

2. Blade support with hundreds meter, easy for observing and controlling the cutting degree of blade feeding

3. Main engine rotary velocity is ofnon-step regulation, the blade feeding speed is same
4. Hi-pressure oil-spray lubricate the V shape seat and rotor shaft, the oil-spray time is of exterior adjustable
5. Auto, inching two working status, easy for adjustment

Technical parameter:

Concentricity	≤0.005mm
Rotor O.D	15~100mm
Surface roughness	Ra 1.6
Shaft length	50~350mm
Armature shaft diameter range	3~16mm
Max cutting volume	≤0.5mm
Power voltage	220V ±5% 50HZ
Liner velocity	0-400m/min (stepless regulation)
Main engine power	l.l.75KW

Commutator Surface Turning Machine For Precise Lathing Mini Engine Rotor
