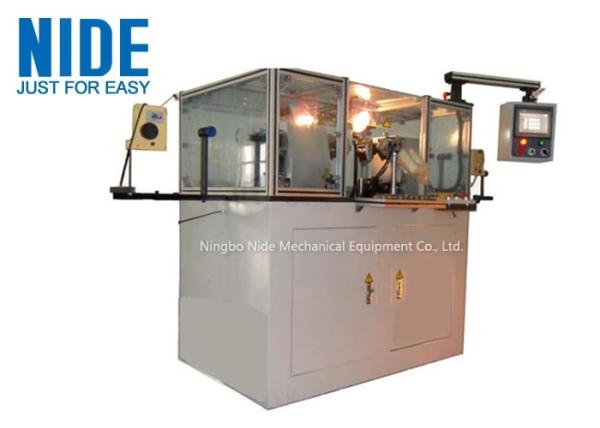

Small Wire Armature Winding Machine for electric motor

Name: Small Wire Armature Winding Machine for electric motor
Brand: Nide
Price: 1 USD

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : ND-LAW-2D

MOQ : 1 set

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 45 working days

Payment Terms : TT/ LC

Supply Ability : 120 sets per year

color : customized

suitable for : samll wire armature

controlled : PLC

Contact Now

Small Wire Armature Winding Machine

Quick Detail:

1. This machine is suitable for samll wire armature.

2. It can automatically wind armature.

3. Machine is controlled by Mitsubishi PLC.

4. This machine is easy for operation.

Description:

LAW-2 series automatic AC servo armature winding machine adopts international advanced technology that use AC servo for winding and indexing. Also, this series of armature winding machine uses colorful LCD which is easy for users to change the parameter, and improve the efficiency largely. It is suitable for small wire diamter winding. It is a good choice for motor manufacturer.

Techinical parameter:

Item	Specification
Wire diameter	0.08~0.30mm (Mechanical type)
Wire diameter	0.16~0.55mm (Hysteresis)
Winding slots	Odd/even number
Commutator diameter	8~40mm
Armature diameter	20~60mm
Armature stack length	10~60mm
Winding motor speed	0~3000 rpm
Control system	Mitsubishi PLC control
Air supply pressure	5~7 Kg/cm2
Voltage	AC220V 50/60Hz
Weight	500Kg
Dimension	1800(length)X800(width)X1500(height)mm
