Air Condition Motor Stator Testing Panel Equipment, stator tester machine

Name: Air Condition Motor Stator Testing Panel Equipment stator tester machine
Brand: Nide
Price: 1 USD

Buy cheap Air Condition Motor Stator Testing Panel Equipment, stator tester machine product

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : ND-VGX-23X-ATE2

MOQ : 1 SET

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 35 working days

Payment Terms : T/T, L/C

Supply Ability : 35 sets per year

use for : motor stator testing

color : customized

condition : new

working stations : double two

Contact Now

Intelligent Motor stator Testing Panel Equipment

Quick Detail:

1. Model No.: ND-VGX-23X-ATE2

2.The motor stator tesing panel is applied to integrated test varieties of compressor stator in refrigerator, air conditioner and heater etc.

3. Each test items could be on or off randomly.

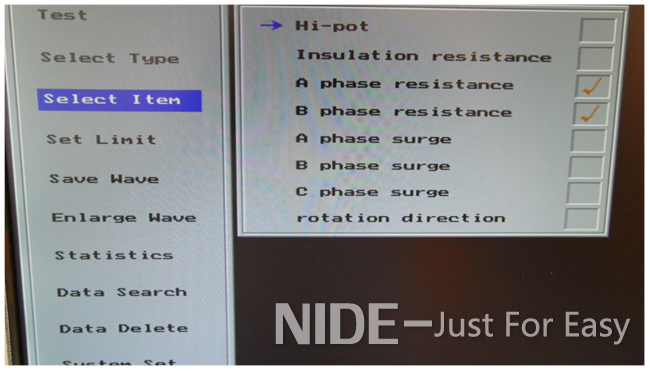

4.The testing data will show on the screen.

Description:

This series of stator testing equipment is applied to integrated test varieties of compressor stator in refrigerator, air conditioner and heater etc. It's LCD shows all technical data which obtained by industrial control computer, which check and verify the quality of testing stators.

Test item and Techenical Specification:

1.DC resistance test:

current:1000mA range:0-2Ω

current: 100mA range:2Ω-20Ω

current: 10mA range:20Ω-200Ω

current: 1mA range:200Ω-2000Ω

accuracy:±0.5%

2.Insulation resistance test:

Voltage:DC 250V/500V/1000V

range:5-500MΩ

accuracy:±5%

3.HV test:

Voltage:100-3000V

range:0-20mA

accurancy:±5%

4.surge test:

voltage:100-3000V

surge datas:Differential plot (0-100%), plot difference (0-100%), store three standard waveforms

accurancy:±5%

5.other test:

Each test items can be selected or abandoned at random to meet the efficiency of the test
