Automatic motor Stator coil Lacing Machine ( Stator Coil Lacer ) With PLC Control

Ningbo Nide Tech Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Automatic motor Stator coil Lacing Machine ( Stator Coil Lacer ) With PLC Control

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : BXSIIL1-160-160-4B

MOQ : 1 SET

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 60 working days

Payment Terms : T/T, L/C

Supply Ability : 90 sets per year

Name : stator coil lacing machie

Color : customized

working side : up and down side

condition : new

control : PLC

screen : touch

Contact Now

Automatic Stator Lacing Machine ( Stator Coil Lacer ) With PLC Control





Quick Detail:

1.This stator coil lacing machine is controlled by PCL controller.
2. Double needles lacing the overhang winding each side simultaneously.
3. The coil lacing machine is characterized by compact appearance, fast speed and low noise.
4. This coil lacing machine will automatically feeding and cutting and lacing.
5. The coil lacing machine is controlled by servo system.
6. PLC and touch screen control.





Description:

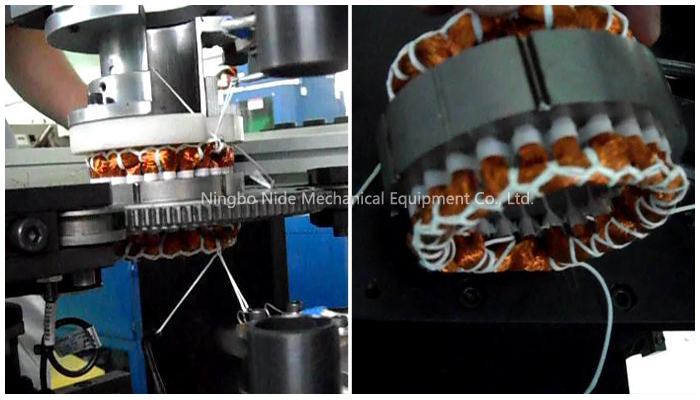

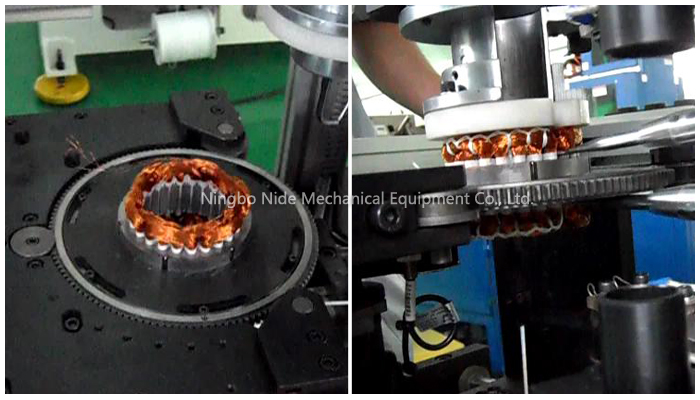

Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc.; overhang winding adopts twin needle lacing by servo system simultaneously; needle indexing, hooking and stator indexing are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface; characterized by compact appearance, fast speed .low noise; simple operation and easy tooling change.




Competitive advantages:

Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it’s programmable.





Applications:

The automatic stator coil lacing machine is suitable for lacing the oven-hang of the induction motor stator. It is used for stator which meets the specification of below.



Specifications :

Min. stator ID

33mm

Max. stator OD

150mm

Over-hang height

15~48mm

Stator stack length

15~120mm

Pitch time

About 0.5~0.7sec/slot

Power supply

380V/50/60Hz

Air pressure

0.5~0.8MPa

Power

3KW

Dimension

1570 x 670 x 1680mm

Weight

About 900kg







Automatic motor Stator coil Lacing Machine ( Stator Coil Lacer ) With PLC ControlAutomatic motor Stator coil Lacing Machine ( Stator Coil Lacer ) With PLC Control
