Automatic Slot insulation paper inserting machine for electric motor stator
1. Introduction:
The slot insulation paper inserting machine is used for electric motor stator manufacturing, suitable for different design or different sizes of stator slot. It not only has the insulation paper forming function, but also can push the clamped insulation paper into a groove of the motor stator, has efficient automatic performance, and puts an end to the low efficiency working manner of manual insertion.
2. Working principle:
The automatic insulation paper inserting machine is mainly includes a paper feeding device, an indentation device and a cutting device. A insulation paper guide slot is arranged between the indentation device and the cutting device; a paper pushing mechanism is matched with the cutting device; after the paper feeding device sends out a piece of insulation paper, the insulation paper passes through the indentation device, the paper guide slot and the cutting device sequentially, and then is pushed out of the cutting device by the paper pushing mechanism; the insulation paper finally enters the motor stator clamped on a stator clamping workbench on a side surface of the working platform; the stator clamping workbench is connected with the working platform via a rotating shaft, and can turn over around the rotating shaft.
3. Features:
It can finish insulation paper insertion at a time;
Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot;
Use servo paper inserting machine to feed paper and settle breadth;
Interpersonal interface sets required specific parameter;
Forming mould is adjustable to different sizes of slot automatically;
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information,
Simple operation and reliable, low noise, fast speed and high automaticity.
4. Technical data:
| Product name: | Automatic stator insulation paper inserting machine |
| Stator stack length: | 20~160mm |
| Stator OD: | max 190mm |
| Stator ID: | 50~120mm |
| Folding height/width: | 2~4mm/4~7mm |
| Insulation paper thickness: | 0.188~0.35mm |
| Efficiency: | ≈0.8s/s |
| Power: | 380V/50/60HZ 0.75KW |
| Machine weight: | ≈250kg |
| Machine dimension: | (L) 1200*(W) 650*(H) 1200mm |
5. Application:
This Stator Insulation Paper Inserting Machine is suitable for single phase motor, three phase motor, induction motor, washing machine motor, fan motor, gasoline generator, etc.

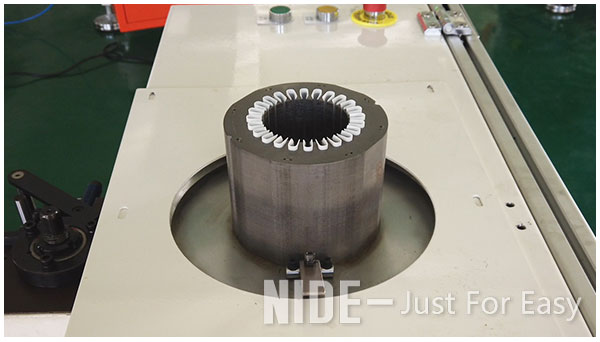

6. Picture show:
Besides paper inserting machine, we also provide insulation material with different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Polyester film Class E, Red Vulcanized Fiber, Class A.
