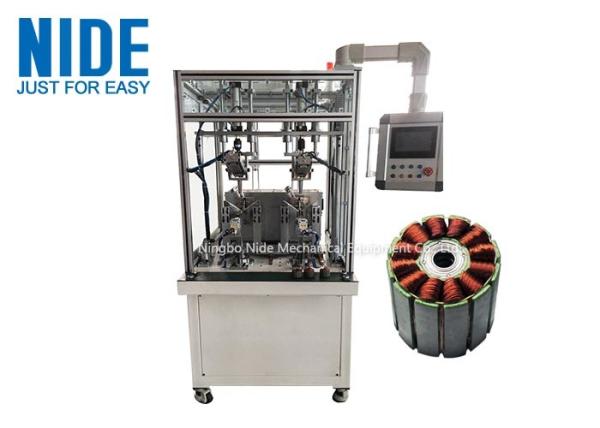

Double station Automatic Micro Brushless DC motor outer stator flyer Winding Machine for UAV drone outrunner motor manufacturing
The BLDC stator outer rotor flyer winding machine video
(1). Introduction
The automatic BLDC outer stator flyer winding machine adopts double stations winding, is used for Brushless DC motor UAV drone outrunner motor manufacturing
(2). Main functions
Adopt PLC automatic main R&D system, combined with pneumatic components, and man-machine operation interface, to automatically realize the main actions such as positioning, indexing, flying fork winding cross-slot, servo wiring, automatic thread trimming, etc., can store 30 groups parameter.
(3). Technical Parameters
| Product name: | Double stator BLDC outer stator flyer winding machine |

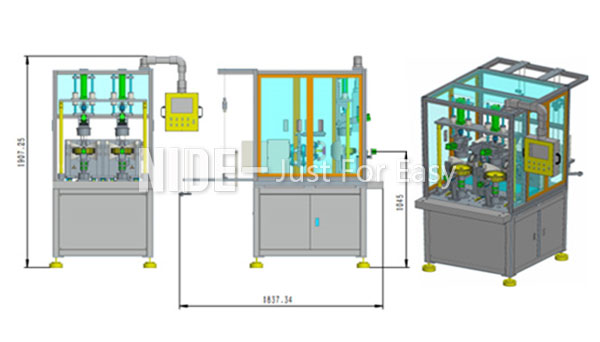

| Dimension: | 900x2100x1700mm |
| Weight: | 500KG |
| Air pressure: | 0.4-0.7Mpa |
| Voltage: | Single phase 220V ,50HZ ,three phase 380V,50HZ. |
| Power: | 5KW |
| Stator OD range: | D75-D198mm(need to change tooling) |
| Stator stack range: | 8-40mm(The tooling can be used with a stator with a height range of 5mm. Note: If the tooling is designed according to 35mm, it can be used with a stator of 35-30. If it exceeds 35, the guard plate and I-block accessories need to be replaced.) |
| Wire diameter: | 0.35-0.65mm (If it exceeds this range, replace the thick wire tensioner 0.65-1.3mm) |
| Primary qualification rate: | ≥98%(if neat wire array, the stator stack height error is less than 0.2mm) |
| Cycle time: | 4min/pc(according to actual winding parameters.) |
(4). Application

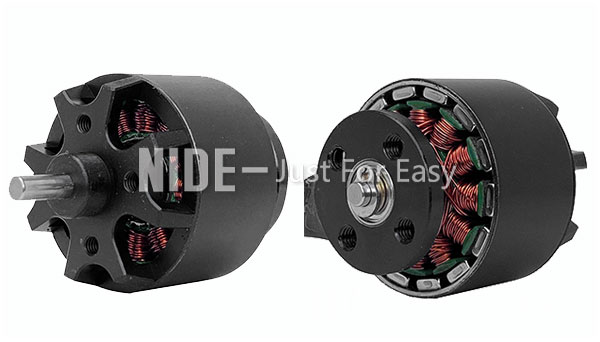

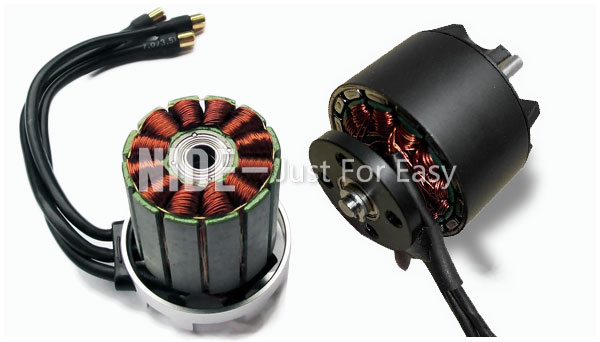

The automatic flyer winding machine is used for winding Micro Brushless DC motor outer rotor , is suitable for PTZ motor, drone motor, wheel hub motor, outrunner motor, etc.
(5). Picture show
