Automatic Multi-shaped slot stator winding machine for BLDC washing machine motor manufacturing
The automatic multi-shaped slot stator winding machine is used for Automation Washing machine electric motor engineering. The stator winding machine adopts needle coil winding technology, is suitable for Large and medium brushless motor multi-shaped slot stator , such as drum washing machine, turbo washing machine and water pump motor , it adopts single working station structure. The BLDC stator coil winding machine can automatically complete the winding process, high efficiency, safety.
The BLDC stator winding machine offers complete programming freedom, so you can decide where to anchor the initial starting wire before winding, whether to run the cycle clockwise or anticlockwise, and all the necessary position changes to complete the process.
Application
The BLDC stator winding machine is use for Large and medium Special-shaped slot electric motor stator coil winding, such as drum washing machine, turbo washing machine and water pump motor, BLDC , brushless DC motor, etc.
Specification:
| Product name: | Automatic BLDC multi-slot stator winding machine for washing machine motor |
| Type: | Automatic |
| Stator type: | Same-shaped slot stator or special-shaped slot stator, customers can set according to their needs |
| Stator ID: | 45-180mm |
| Stator OD: | 60-210mm |
| Wire dia.: | 0.15-1.2 mm |
| Stack length: | 5-160mm |
| Winding Method: | Needle coil winding |
| Winding speed: | 50-400 r/min |
| Winding stations .: | one |
| Air pressure: | 0.5MPa～0.7 MPa |
| Voltage: | 380V/50HZ three phase four wires |
| Power: | 10 KW |
| Dimension: | 1200L*750W*1900H |
| Weight: | About 300kg |
Picture show:

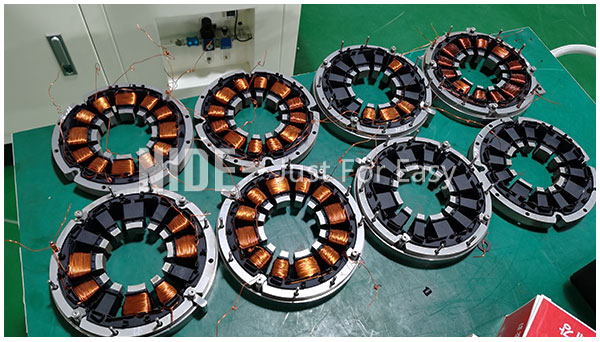

The automatic stator winding machine is used for Special-shaped slot stator coil winding
