OEM Vulcanized Paper Insulation Red Steel Paper Gasket
Red steel paper gasket combines the good insulation properties of wood pulp insulating paper and the good dielectric, mechanical toughness, flexibility and resilience of polyester film, and has better thermal stability. Widely applicable to electrical equipment, suitable for slot-to-slot insulation, turn-to-turn insulation and liner insulation of Class B motors.
Red steel paper gasket insulation material is a kind of soft composite material, which is a two-layer insulating paper made of polyester film coated with adhesive and wood pulp insulating paper on one side.
| Product: | Vulcanized Paper Insulation Red Steel Paper Gasket Ring |
| Outer diameter: | 21.7, customized |
| Inner diameter: | 14, customized |
| Height: | 0.5, customized |
| Material: | Red fast paper t=0.5 |
| Insulation class: | Class B, customized; |
| Temperature resistance: | 130℃, customized |
| Appearance: | Uniform surface, no fuzz, and no defects such as bubbles, wrinkles and blemishes |
| Requirements: | RoHS Compliant |
Features of red steel paper gasket insulating paper
The red steel paper gasket insulation material has the function of insulation and anti-interference, high electrical insulation, mechanical strength, softness and elasticity; the red fast paper is especially resistant to acid and alkali corrosion, tear resistance and wear resistance. Moisture insensitive, non-toxic and flame-resistant.

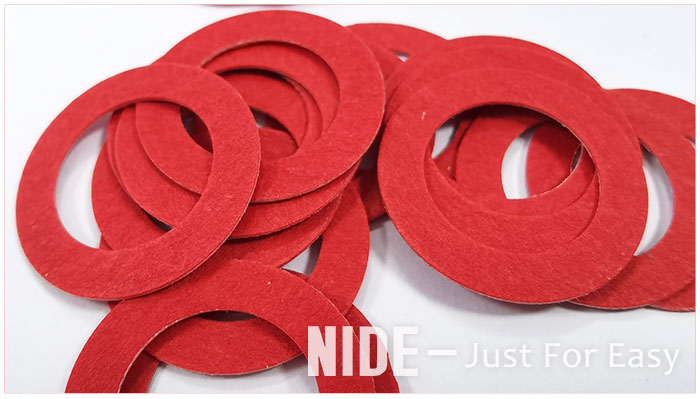

Red Steel Paper Gasket Picture
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Product Tags:
|
|

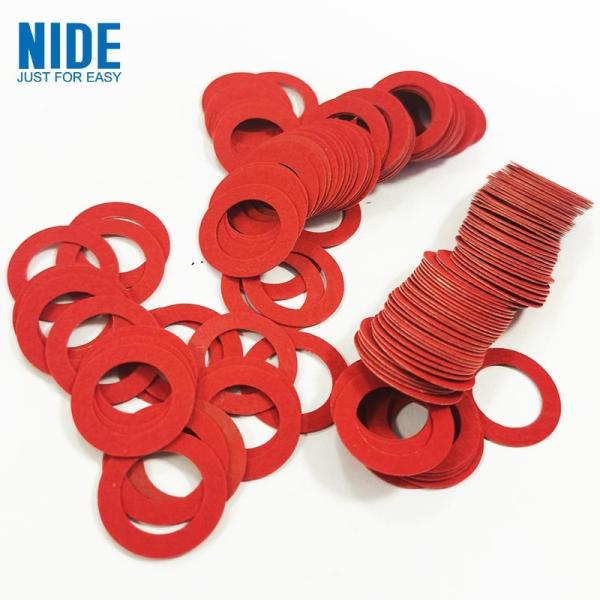

OEM Vulcanized Paper Insulation Red Steel Paper Gasket Images
|
