Automatic two needles stator coil lacing machine BXⅡL1-160 / 160

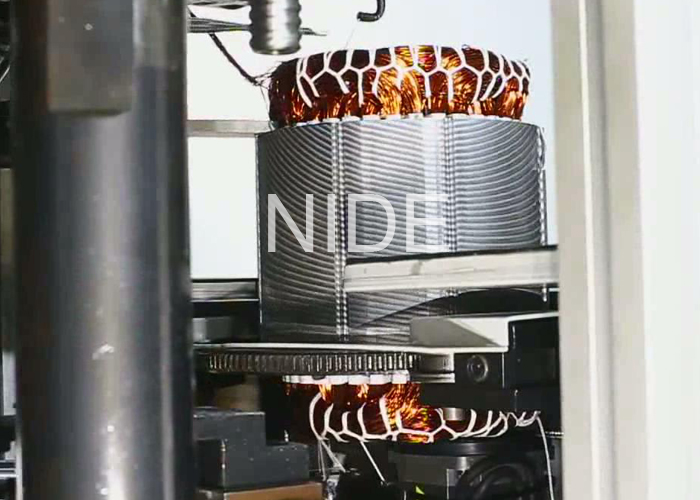

NIDE manufacturing motor stator coil lacing machine is Safety, quality and efficiency ,The end turns are laced with a "diamond" stitch pattern. Both sides are laced at the same time and a real knot is being tied at the end.
The stator coil lacing machine is equipped with two needles, each needle for laing each side of stator coils. The needle movement is controlled by servo drive system to complete the lacing work. There are no dangerous manual manipulations of the lead ends necessary. Eliminating the major risk for injuries at a lacing machine.
Lacing machine technical data
| Item | Unit | Data |
| Size | mm | 1400(L)×580(W)×1600(H) |
| Weight | kg | ≤750kg |
| Power | | 380V/50Hz three phase four wire power |
| Working pitch time | S/PC | ≤14(24 Slots) |
| ID | mm | Φ40~Φ120 |
| OD | mm | Φ160 |
| Head coil height | mm | 50 |
| Tooling stroke | mm | ≤70 |
| Lacing speed | s/s | 0.8 |
| Air source | Mpa | 0.4~0.8 |
Applications:
This machine is appropriate for micro induction motor like conditioner motor, washer motor, compressor motor, fan motor, alternator motor, pump motor etc.
Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen,
The working station of this lacing machine
Information needed for stator lacing machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stator winding drawing
4.Winding drawing
5. Other technical requirement
If possible, it will be better if customer can send us samples.
Motor Stator coil lacing machine working table
