NIDE High Quality stator coil lacing machine for lacing wire
(1)Application OF THE STATOR LACING MACHINE
The stator coil lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor etc.
The stator coil lacing Machine adopts two hands simultaneously start button to ensure safety.
(2) Technical data OF THE STATOR LACING MACHINE
| Prouduction name: | Automatic stator coil lacing machine |
| Stator ID: | 30~90mm |
| Stator OD: | Max. 135mm |
| Stack length: | 10~110mm |
| Coil height: | Max. 40mm |
| Lacing mode: | slot by slot/ interval slot/ fancy lacing |
| Lacing speed: | 0.8s/s |
| Power: | 380V/50/60HZ 3.5KW |
| Lacing Machine weight: | about 400kg |
| Lacing Machine dimension: | L1000*W600*H1250mm |
(3) Machine main function and characteristic OF THE STATOR LACING MACHINE
This stator coil lacing machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
The stator coil lacing wire Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient.
Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity for 24slots ≤30s/pc.
After lacing, there is no copper wire snap or wire enamel broken.
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This coil lacing machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.

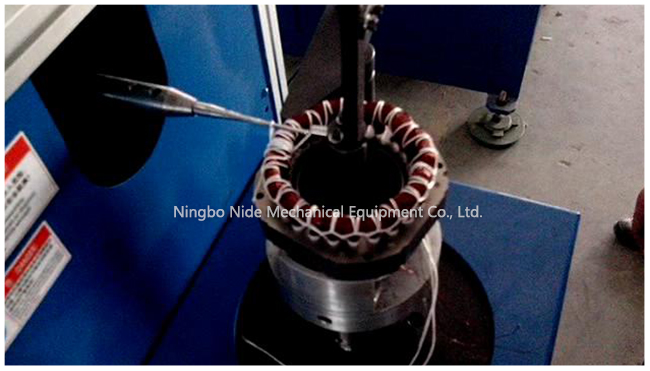

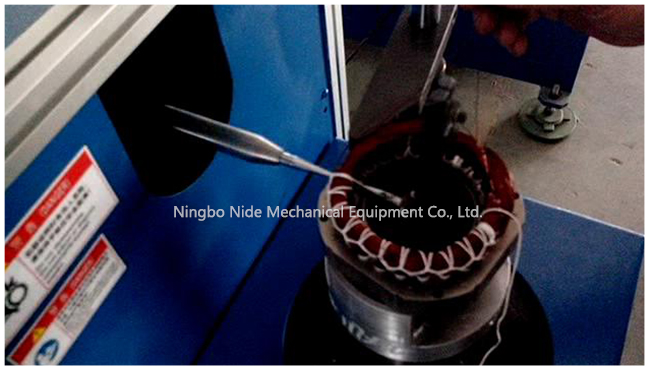

(4)The staor coil lacing machine working picture display
