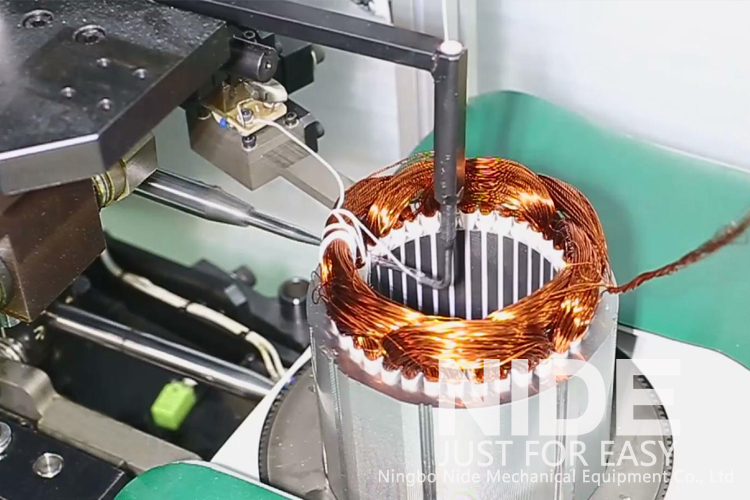

Automatic Low Noise Stator Wire Lacing Machine Working Up And Down For Electric Motor

Automatic Working up and down low noise Stator Wire Lacing Machine for electric motor

(1) Application of The stator lacing machine

This Stator Wire Lacing Machine adopts two hands simultaneously start button to ensure safety.

And the lacing machine is suitable for air  fan motor, washing machine motor, compression motor, conditioner motor, generator motor and pump motor etc,

The stator coil lacing machine  is widely used in people's lives,although many people do not know it

(2) Technical data of The stator lacing machine

(3) Machine main function and characteristics of The stator lacing machine

• This stator wire lacing machine adopts safety grating protection system. Operator need to stand when operating.
• The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
• This stator coil winder lacing machine adopts servo driven system, CNC control design and HIM program.
• Main spindle adopts servo control system. The rotation speed can be set.
• Two needles driven by servo system lace upper and lower coil simultaneously.
• Machine can automatically feed thread and cut thread. There is no need to tie a knot.
• Tooling change is fast and convenient. Stator stack length range is 50-130mm.
• Production capacity ≤1s/slot.
• The Lacing tension can be set easily.
• Should be no copper wire snap and wire enamel broken.
• Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
• ​The lacing Machine adopts two hands simultaneously start button to ensure safety, it is very Convenience and hight efficency!
